Overview

Basic Info.

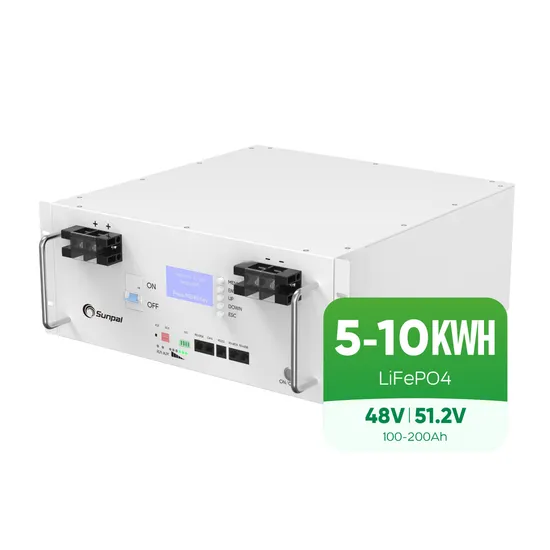

Model NO.	PP-E1-5kWh
Rechargeable	Yes
Size	Medium
Communication Port	Can, RS232, RS485
Protection Class	IP20
Weight	42-88kg
Maximum Charging Current	100A
Maximum Discharging Current	100A
BMS	Built-in
Cycle Life	6000 Cycles @80% Dod, 0.5c
Warranty	10 Year
Certification	MSDS, Un38.3, RoHS, IEC62619, CE
Transport Package	Wooden with Pallet
Specification	580*530*210
Trademark	Sunpal
Origin	China
HS Code	8507600090
Production Capacity	500PCS/Day

Packaging & Delivery

Package Size58.00cm * 53.00cm * 21.00cm Package Gross Weight88.000kg

Product Description

Product Description

MODEL	48V 100Ah	48V 200Ah	51.2V 100Ah	51.2V 200Ah
Electrical Characteristics
Rate voltage(Vdc)	48		51.2
Cell combination	15S1P	15S2P	16S1P	16S2P
Rate capacity(AH)	100	200	100	200
Energy storage(KWH)	4.8	9.6	5.12	10.24
Cycle life	6000 cycles @80% DOD, 0.5C
Charge/Discharge Standard
Charge voltage(V)	52.5		56
Max. charge current(A)	100 (Optional 150/200A for 200AH pack)
Max. discharge current(A)	100 (Optional 150/200A for 200AH pack)
Discharge cut-off voltage(VDC)	40.5		43.2
Charge cut-off voltage(VDC)	54.75		58.4
Enviornment
Charge temperature	0°C to 55°C@60±25% Relative Humidity
Discharge temperature	-20°C to 55°C@60±25% Relative Humidity
Storage temperature	-20°C to 55°C@60±25% Relative Humidity
Mechanical
IP class	IP20
Material system	LiFePO4
Case material	Metal
Case type	Rack Mount
Pack dimension L*W*H(mm)	480*483*133 (3U)	680*442*178 (4U)	480*483*133 (3U)	680*483*178(4U)
Package dimension L*W*H(mm)	580*530*210	850*570*285	580*530*210	850*570*285
Net weight(kg)	42	84	44	88
Gross weight(kg)	47	93	49	97
Communication
Protocol(Optional)	Canbus/RS485/RS232
Certificates
Pack	UN38.3, MSDS	UN38.3, MSDS	IEC62619,CE,UL1973	UN38.3, MSDS,CE
Cell	UN38.3, MSDS, IEC62619, CE, UL1973
